Syngene Gel Doc 凝膠影像系統

Product Overview

Syngene is a world-leading supplier of gel documentation (gel doc) systems for rapid imaging and accurate analysis of DNA, RNA, and protein gels. With over 30 years of experience in imaging technology, Syngene products are used globally by thousands of molecular biologists and scientists in life sciences, genomics, and proteomics applications. The comprehensive Gel Documentation range offers a choice of entry-level, manual, standalone, and fully automated systems to meet diverse laboratory imaging needs, from basic DNA gel documentation to advanced multi-application fluorescence imaging.

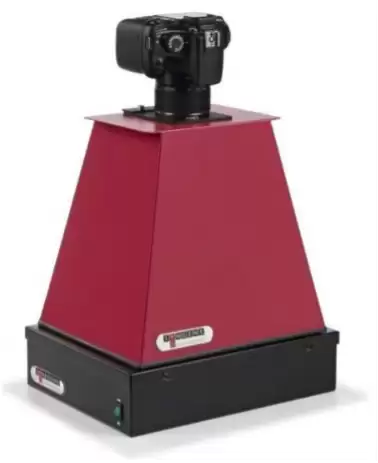

The DigiGenius system represents an economical, entry-level solution for laboratories with limited budgets. Equipped with a high-resolution 24.1MP camera, this compact system delivers reproducible, publication-quality images for essential gel documentation. The modular design allows users to start with a basic configuration and progressively add UV transilluminators, visible light converter screens, blue light transilluminators, and GeneTools analysis software as needs evolve. The DigiGenius features flexible lighting options including a 302nm UV transilluminator with safety lid for DNA gel imaging, visible light converter screens for Coomassie Blue and silver-stained protein gels, and blue LED transilluminators for safe dye applications such as SYBR Safe and GFP. The system connects directly to PC or Mac computers for real-time image preview and capture, with an intuitive interface that requires minimal training, making it ideal for teaching laboratories and routine documentation workflows.

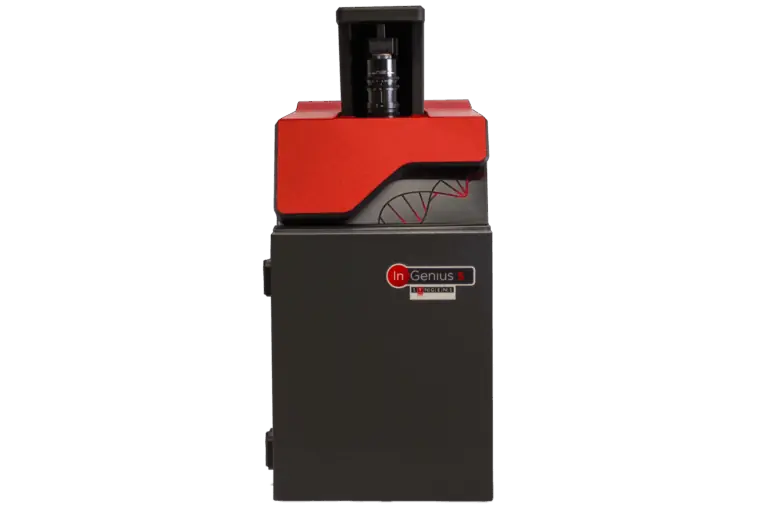

The InGenius 5 manual gel documentation system provides researchers with complete control over imaging parameters while maintaining affordability and compact design. Featuring a 5MP CMOS camera with F/1.4 zoom lens and a 20 x 24 cm viewing area, the InGenius 5 delivers high-resolution images with advanced capabilities. The newly developed image capture software introduces sophisticated features including saturation detection that highlights overexposed bands in red, Extended Dynamic Range (EDR) technology that combines multiple exposures to capture bright and dim signals simultaneously without saturation, and Dynamic Fielding for automatic background correction. The compact darkroom integrates overhead LED white lighting for sample positioning and a slide-out drawer accommodating UV, blue, and white light options. Manual control of aperture, zoom, and focus provides experienced users with fine-tuning capabilities for optimal image quality. The system is controlled by GeneSys software containing an extensive dye database for automatic selection of appropriate lighting and filters, while unlimited licenses of GeneTools analysis software enable offline data processing on any computer.

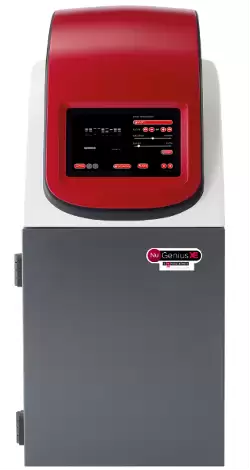

The NuGenius XE represents a breakthrough in standalone gel documentation with its integrated Windows 10 Enterprise PC and 7-inch touchscreen interface. This compact benchtop system features a groundbreaking 5MP camera with exceptional sensitivity and an F/1.2 motor-driven zoom lens capable of imaging samples up to 20 x 24 cm - remarkably large for such a compact unit. The built-in PC upgrade from Raspberry Pi provides superior connectivity, with 80GB internal memory for local image storage and support for USB and network transfer. The intuitive touchscreen interface running GeneSys software guides users through simple touch-based workflows, with automatic selection of optimal lighting and filters based on gel type and dye selection. A key differentiator is standard Stain-Free imaging capability, enabling label-free total protein detection on gels without chemical staining, saving time and preserving sample integrity for downstream applications. The camera is optimized for extended exposures required for Stain-Free imaging. An optional safety shield allows safe DNA band excision under UV illumination with the darkroom door open. Network connectivity enables remote support from Syngene technical specialists and allows IT teams to apply security settings remotely. The system comes with unlimited GeneTools licenses and supports direct USB printer connection for immediate hardcopy output.

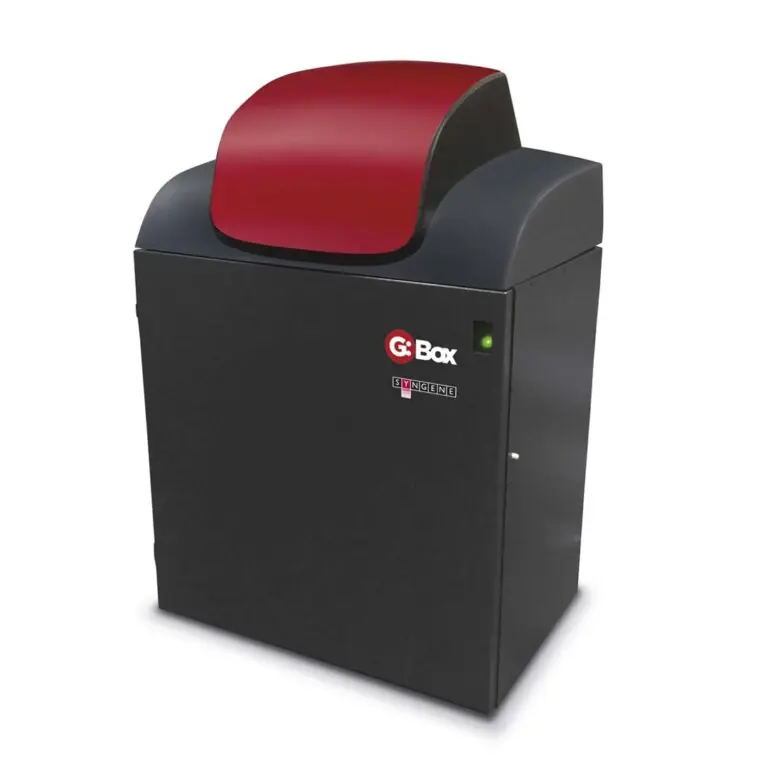

The G:Box F3 lfb (Lens Feedback) represents the flagship of Syngene's entry-level automated gel imaging systems, designed specifically for fluorescence and visible light applications. This sophisticated system combines a 5MP high-resolution CCD camera capable of 16-bit imaging with 65,535 grey scales, an F/1.2 motorized zoom lens, motorized filter wheel, and the proprietary Lens Feedback technology. The stylish modular darkroom accommodates gels up to 32 x 24 cm while maintaining a compact footprint. The Lens Feedback feature allows users to save complete imaging protocols including zoom position, focus distance, aperture settings, filter selection, and exposure times, enabling perfect reproducibility of previous imaging conditions with a single click - invaluable for standardized workflows and multi-user laboratories. Controlled by GeneSys application-driven software with a database containing hundreds of dye and application protocols, the G:Box F3 lfb automates the entire imaging process: users simply specify the sample type and dye, and the system automatically selects optimal lighting, filters, and camera settings. Multiple internal lighting options include UV transilluminators for ethidium bromide DNA gels, UV-to-blue light converter screens for SYBR Safe and GelGreen safe dyes, UV-to-visible converter screens for Coomassie Blue protein gels, and blue LED transilluminators, plus overhead white LED lighting for sample positioning. The integrated QuickQuant feature in GeneSys software enables immediate quantification of protein and DNA bands at the point of capture, while GeneTools software provides comprehensive offline analysis including band detection, molecular weight estimation, concentration quantification via standard curves, and multi-fluorescence analysis of up to 5 samples simultaneously. Both GeneSys and GeneTools meet 21 CFR Part 11 and GLP requirements with complete audit trails and electronic signatures for regulated environments. The system includes a 3-year warranty, unlimited GeneTools licenses, and biannual free software updates, ensuring long-term investment protection and access to the latest imaging protocols without additional licensing costs.
