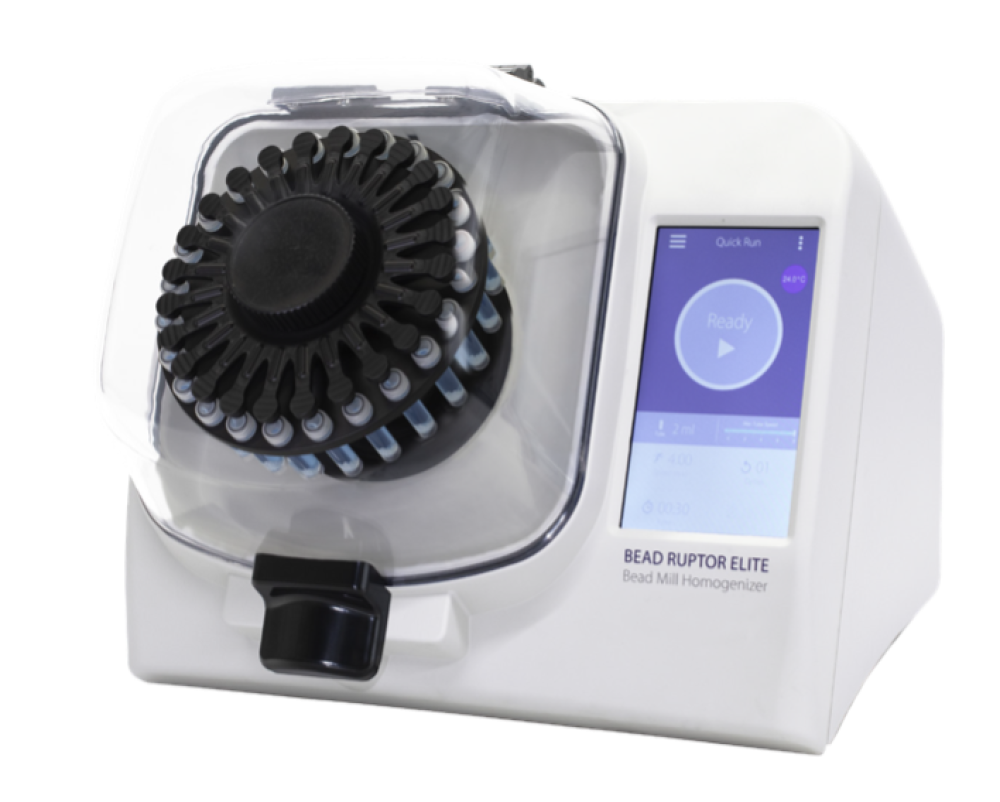

Omni Bead Ruptor Elite 高效能磁珠式生物樣品三維震盪均質機

分類: Revvity

Ｏmni系列均質機採用獨特的三維立體高速震盪方式，降低研磨珠自旋機率，可30~60秒之內有效均質各種檢體，如動植物組織、細菌、真菌以及孢子、毛髮、皮膚、骨骼、糞便、土壤等難均質樣本。

應用

Omni Bead Ruptor系列均質機專為組織研磨、裂解，均勻樣本所設計的，可在短時間內將組織研磨成均勻質地樣本，利於接續下游分生實驗，如核酸萃取、蛋白質萃取、打破微生物細胞壁。

Bead Ruptor Elite產品特色

(tissue grinding, homogenizer, bead ruptor, Bertin, tissue lyse )

可上機研磨形式多樣化，可相容24 x 0.5 mL, 24 x 1.5 mL, 24 or 48 x 2 mL, 12 x 7 mL, 12 x 15 mL, 6 x 30 mL, 3 x 50 mL. （需選配適配器）

最多可研磨48個2mL研磨管（需選配適配器）
採觸碰式螢幕操作
均質速度大，處理時間短（30秒以內），降低產熱機率
具備螺紋壓蓋(Finger Plate)，可固定研磨管防止滑落
蓋子具備防呆安全鎖扣，確保操作人員安全
均質速度可調整範圍為0.8m/s 至8m/s
可設定10次循環
可設定1秒至9分59秒
暫停時間（Dwell）可設定1秒至9分59秒
具備即時溫度監控功能
樣本處理體積最小為25uL，最大可達50mL
研磨程式可設定及儲存達99種
可加裝冷卻裝置，可維持樣本槽室溫+4°C範圍內，適用於熱敏感樣本，如RNA、Enzyme或Protein。

可選配配件

1.5 mL Microcentrifuge Tube Carriage

Compatible with most 1.5 mL microcentrifuge tubes

Capacity: 24 x 1.5 mL microcentrifuge tubes

Volume range: 200 μL - 1 mL

Force limit: Maximum speed of 8 m/s

Part number: 19-372

2 mL Tube Carriage

Requires Omni 2 mL tubes

Capacity: 24 x 2 mL skirted screw cap tubes

Volume range: 200 μL - 1.5 mL

Force limit: Maximum speed of 8 m/s

Part number: 19-373

48 Place 2 mL Tube Carriage with 2 mL Finger Plate

Requires Omni 2 mL tubes

Capacity: 48 x 2 mL skirted screw cap tubes

Volume range: 200 μL - 1.5 mL

Force limit: Maximum speed of 7 m/s

Part number: 19-378

7 mL Tube Carriage

Requires Omni 7 mL tubes

Capacity: 12 x 7 mL skirted screw cap tubes

Volume range: 0.5 mL - 5 mL

Force limit: Maximum speed of 6 m/s

Part number: 19-374

15 mL Tube Carriage with 15 mL Finger Plate

Requires Omni 15 mL tubes

Capacity: 12 x 15 mL screw cap conical centrifuge tubes

Volume range: 500 μL - 10 mL

Force limit: Maximum speed of 5 m/s

Part number: 19-375

30 mL Tube Carriage with 30 mL Finger Plate

Requires Omni 30 mL tubes

Capacity: 6 x 30 mL tubes

Volume range: 5 mL - 30 mL

Force limit: Maximum speed of 5 m/s

Part number: 19-376-HT

50 mL Tube Carriage
Requires Omni 50 mL tubes

Capacity: 3 x 50 mL Tubes Force limit: Maximum speed of 5 m/s

Volume range: 5 mL - 50 mL Part number: 19-377

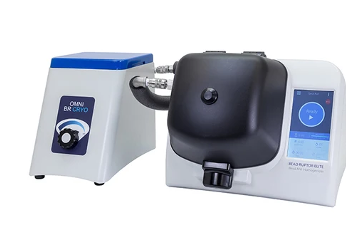

Omni Bead Ruptor Cryo Cooling Unit

· Compatible with the Bead Ruptor Elite

· Adjustable cooling rate

· Compatible with liquid nitrogen or dry ice with ethanol.

· BR-Cryo maintain sample temperatures from 4 °C to ambient

· Prevent protein degradation

· Ensure RNA stability

· Prevent enzyme activation

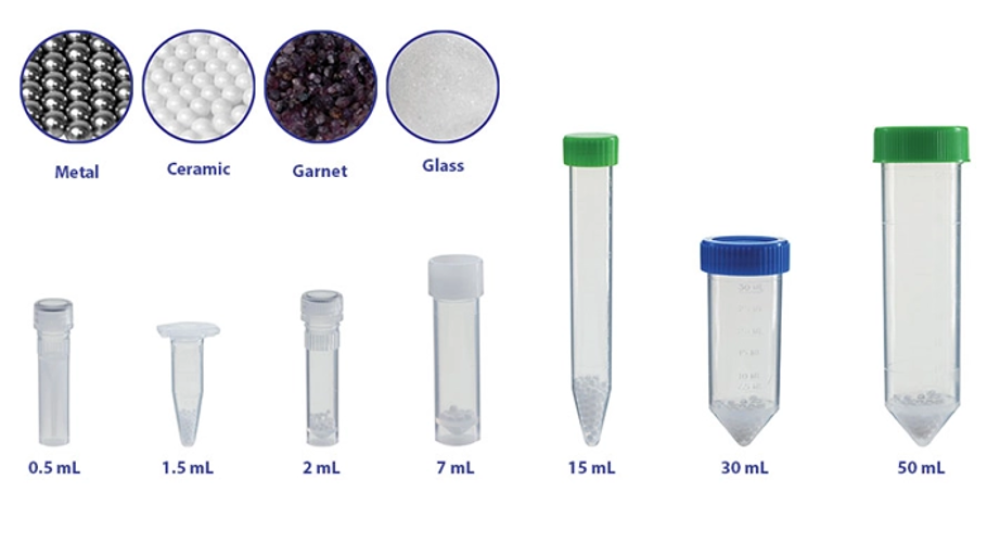

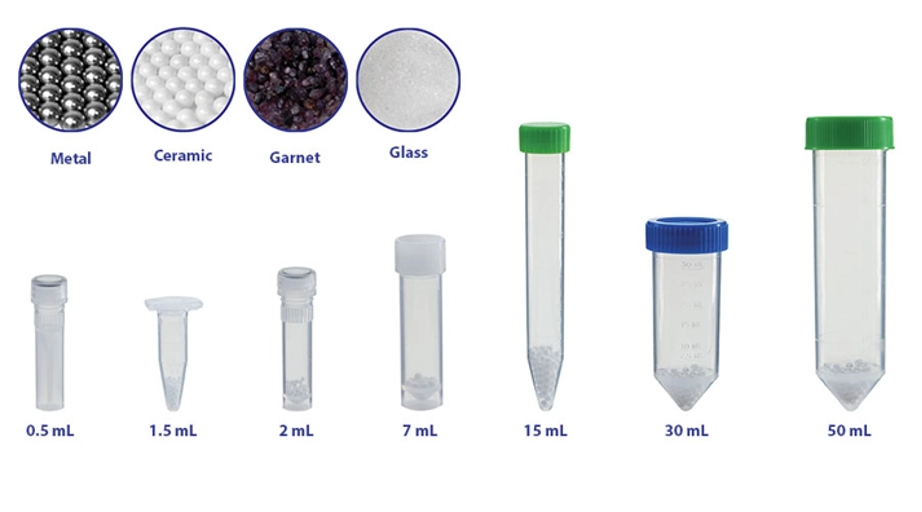

相關耗材（皆為RNase及DNase-free材質）

5mL研磨球管套組（1.5 mL Pre-Filled Tubes）

外觀	品名	應用	包裝	貨號
	Hard Tissue Grinding Mix2.4 mm Metal	適用頑固樣本，如：皮膚、肌肉、骨頭、頭髮、根莖類或種子。	50/pk	19-610
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	適用軟組織，如：腎臟、腦組織、肝臟或脾臟	50/pk	19-617
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-617D
	Hard Tissue Homogenizing Mix 2.8 mm Ceramic	適用堅硬樣本，如心臟、肌肉、皮膚、肌腱、尾巴、完整器官或植物類。	50/pk	19-618
	Hard Tissue Homogenizing Mix 2.8 mm Ceramic	除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-618

2mL研磨球管套組（2mL Pre-Filled Tubes）

外觀	品名	應用	包裝	貨號
	Hard Tissue Grinding Mix 2.4 mm Metal (2 mL Reinforced Tubes)	適用頑固樣本，如：皮膚、肌肉、骨頭、頭髮、根莖類或種子。	50/pk or 1000/pk	19-620 or 19-620-1000
		同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-620D
	Micro-Organism Lysing Mix 0.1 mm Glass	適用於修飾過細胞、細菌、革蘭氏陰性菌、革蘭氏陽性菌或孢子	50/pk or 1000/pk	19-621 or 19-621-1000
	Tough Micro-Organism Lysing Mix 0.5 mm Glass	適用頑固微生物，如革蘭氏陽性菌、酵母菌、真菌、藻類、孢子或浮游生物等。	50/pk or 1000/pk	19-622 or 19-622-1000
	Tough Micro-Organism Lysing Mix 0.5 mm Glass	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-622D
	Hard & Fibrous Tissue Mix 0.7 mm Garnet	適用土壤、黏土、沉積物、廢水和糞便檢體。	50/pk or 1000/pk	19-624 or 19-624-1000
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	適用軟組織、腦、肝、腎、脾和軟植物。	50/pk or 1000/pk	19-627 or 19-627-1000
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-627D
	Hard Tissue Homogenizing Mix 2.8 mm Ceramic	適用硬組織、心臟、肌肉、皮膚、肌腱、尾巴、整個器官和硬質植物材料	50/pk or 1000/pk	19-628 or 19-628-1000
	Hard Tissue Homogenizing Mix 2.8 mm Ceramic	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-628D
	Universal Microbial Homogenizing Mix 0.5 mm Ceramic	適用：較大的微生物：原生動物、線蟲、寄生蟲	50/pk	19-631
	Universal Microbial Homogenizing Mix 0.5 mm Ceramic	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-631D
	Universal Microbial Homogenizing Mix 0.1 mm Ceramic	所有微生物：革蘭氏+和革蘭氏-細菌、酵母菌、黴菌、藻類、孢子和浮游生物。	50/pk or 1000/pk	19-632 or 19-632-1000
	Universal Microbial Homogenizing Mix 0.1 mm Ceramic	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk or 1000/pk	19-632D or 19-632-1000D

5mL研磨球管套組（0.5mL Pre-Filled Tubes）

外觀	品名	應用	包裝	貨號
	Micro-Organism Lysing Mix 0.15 mm Garnet	適用土壤、黏土、沉積物、廢水和糞便檢體。	50/pk	19-623
	RNA Extraction & Soil Homogenizing Mix 0.25 mm Carbide	適用從微生物、土壤和沈積物中萃取 RNA	50/pk	19-625
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	軟組織樣本、活組織檢查(biopsies)、組織穿孔、動脈、神經和靜脈	50/pk	19-626
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	同上。除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-626D

7mL研磨球管套組（7mL Pre-Filled Tubes）

外觀	品名	應用	包裝	貨號
	Hard Tissue Grinding Mix 2.4 mm Metal	適用頑固樣本，如：乾打樣本、皮膚、肌肉、骨頭、頭髮、根莖類或種子。	50/pk	19-670
	Soft Tissue Homogenizing Mix 1.4 mm Ceramic	適用軟組織，如：腎臟、腦組織、肝臟、脾臟或柔軟植物。	50/pk	19-677
	Hard Tissue Homogenizing Mix 2.8 mm Ceramic (7 mL Tubes) Nuclease Free	建議用於：硬組織、心臟、肌肉、皮膚、肌腱、尾巴、整個器官和硬質植物材料。	50/pk or 1000/pk	19-678 or 19-678-1000
		除了RNase及DNase-free外認證外，同時具備Microbial DNA Free 認證	50/pk	19-678D

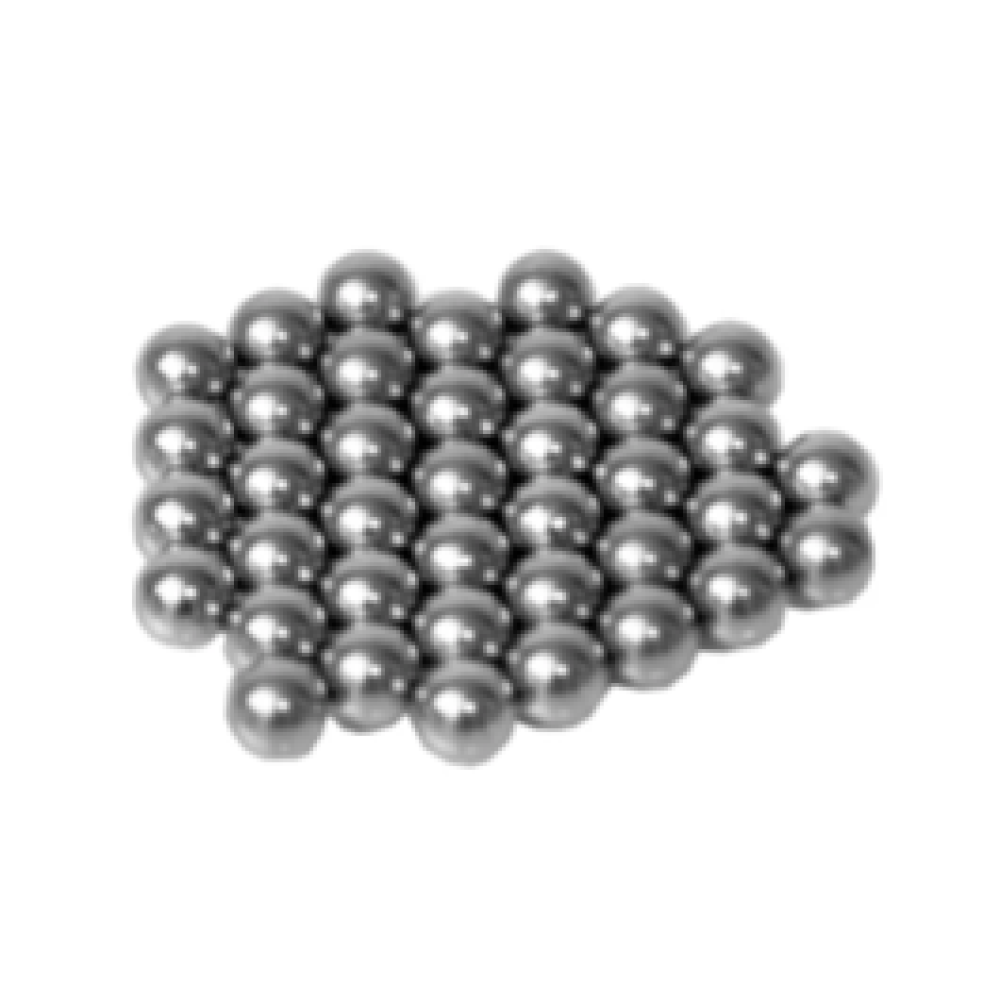

單買研磨珠(Bulk Beads)

外觀	品名	包裝	貨號
	Stainless Steel Beads Bulk, 2.4 mm	500g	19-640
	Stainless Steel Beads Bulk, 5 mm	325g	27-7005
	Glass Beads Bulk, 0.1 mm	400g	19-641
	Glass Beads Bulk, 0.5 mm	400g	19-642
	Garnet Beads Bulk, 0.15 mm	500g	19-643
	Garnet Beads Bulk, 0.7mm	500g	19-644
	Ceramic Beads Bulk, 1.4 mm	325g	19-645
	Ceramic Beads Bulk, 2.8 mm	325g	19-646
	Ceramic Beads Bulk, 6.5 mm	325g	19-682
	Ceramic Beads Bulk, 0.1 mm	500g	19-683
	Ceramic Beads Bulk, 0.5 mm,	500g	19-684

單買研磨管及離心管（Bluk Tubes）

外觀	品名	包裝	貨號
	Tubes with Screw Caps & EPDM O-Rings, 2 mL	500/pk	19-647
	Reinforced Tubes with Screw Caps & EPDM O-Rings, 2 mL	500/pk	19-648
	Reinforced Tubes with Screw Caps & EPDM O-Rings, 2 mL	1000/pk	19-649
	Tubes with Screw Caps & O-Rings, 0.5 mL	500/pk	19-650
	Reinforced Tubes with Screw Caps, 7 mL	500/pk	19-651-500
	Reinforced Tubes with Screw Caps, 7 mL	1000/pk	19-651
	Low Binding Tubes with Screw Caps & Silicone O-Rings, 2 mL	1000/pk	19-660-1000
	Microcentrifuge Tubes, 1.5 mL	500/pk	19-661
	Microcentrifuge Tubes, 1.5 mL	1000/pk	19-661-1000
	2mL Stainless Steel Lysing and Grinding Cryo Tubes	2/pk	19-6001
	Round Bottom Tubes with Snap Caps, 5 mL	500/pk	19-6605-500
	Tubes with Screw Caps, 15mL	100/pk	19-6615
	Tubes with Screw Caps, 15mL	500/pk	19-6615-500
	Tubes with Screw Caps, 30mL	100/pk	19-6635
	Tubes with Screw Caps, 30mL	500/pk	19-6635-500
	Tubes with Screw Caps, 50 mL	100/pk	19-6650

其他機種：

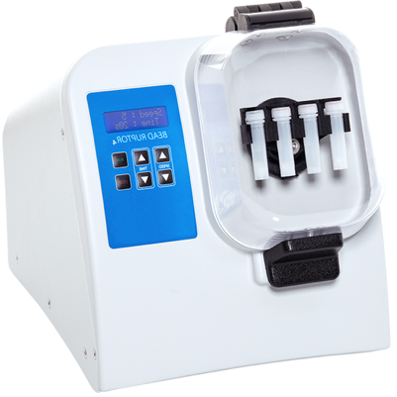

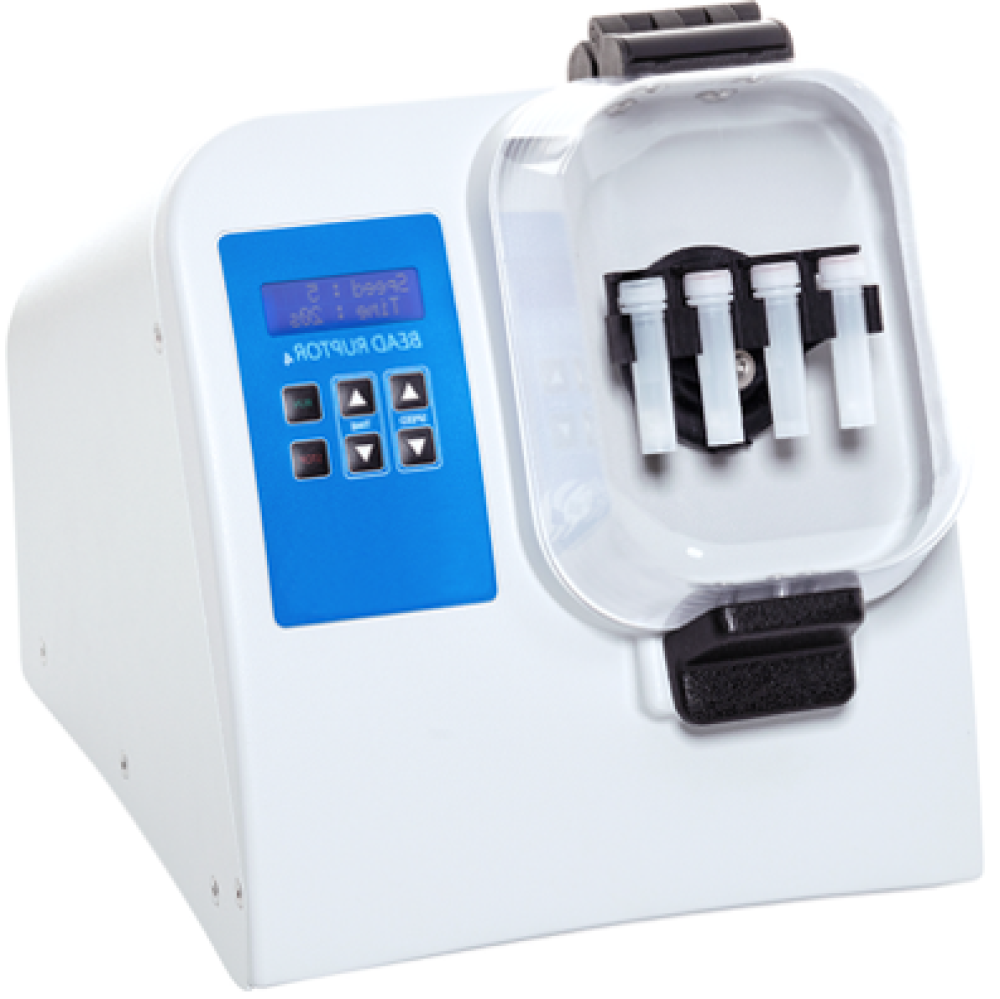

Omni Bead Ruptor 4 bead mill homogenizer

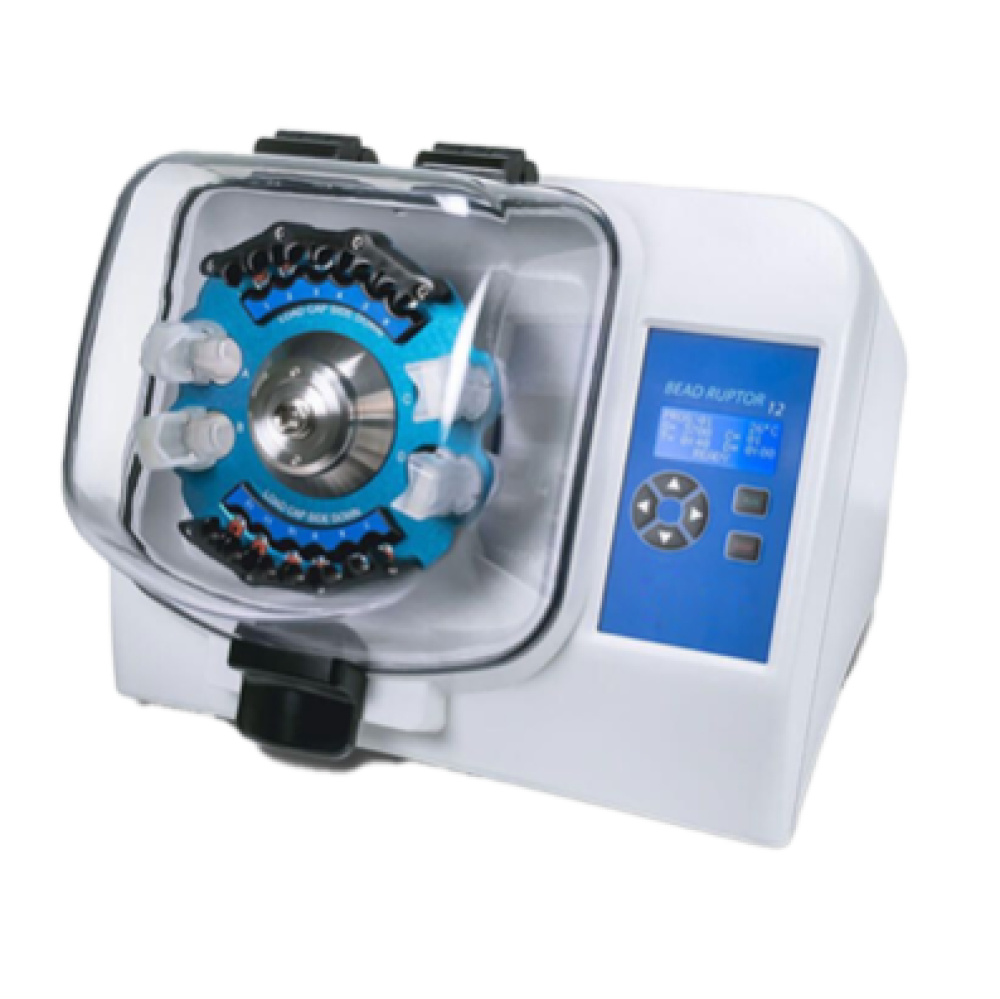

Omni Bead Ruptor 12 bead mill homogenizer

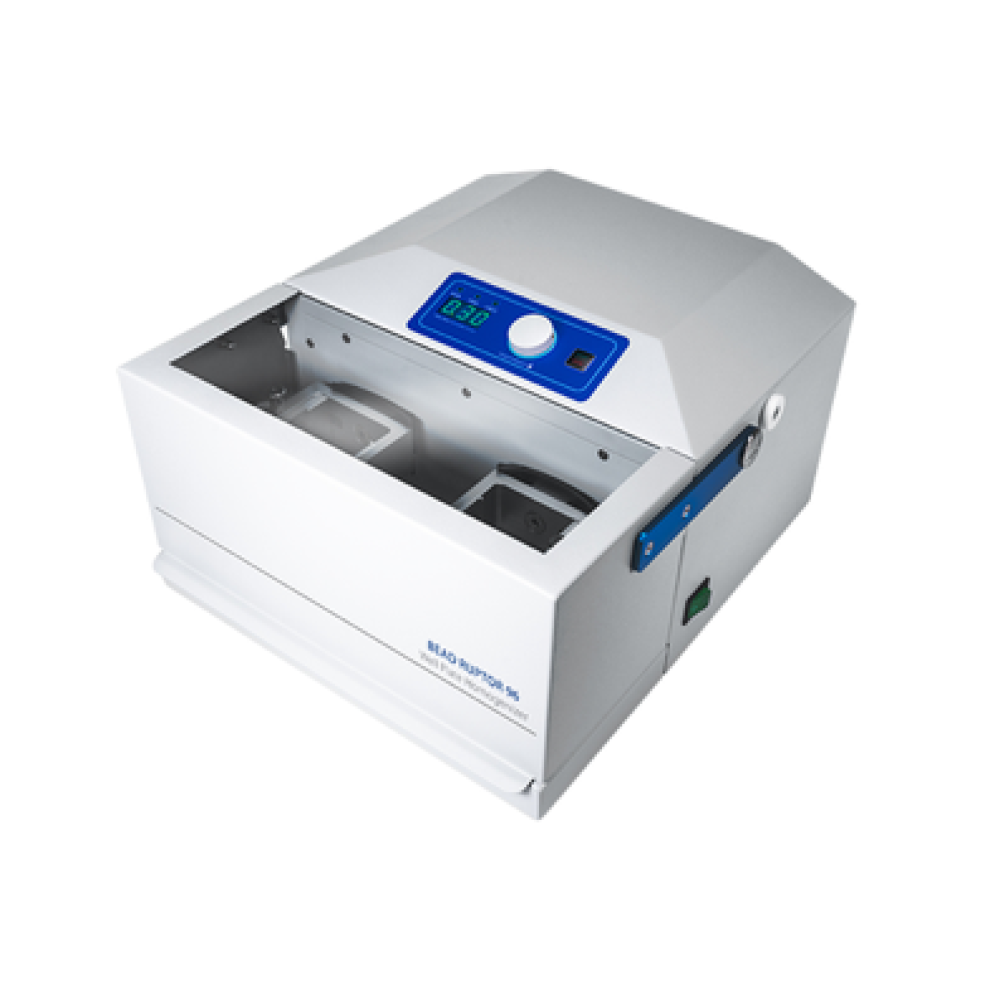

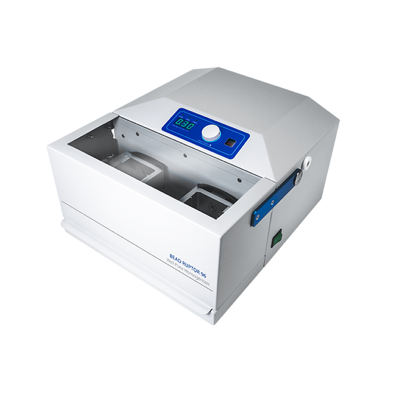

Omni Bead Ruptor 96 well-plate homogenizer 115V

The Omni Bead Ruptor Elite™ bead mill homogenizer is designed with a unique carriage motion to ensure that the intra-tube bead movement reduces swirling and results in the highest bead impact forces of any bead mill on the market. The increased power of the Omni Bead Ruptor Elite decreases processing time and reduces sample heating to maximize sample preparation efficiency.

Features:

Touch screen interface
Optimized tube motion with speeds up to 8 m/s
Process up to 48 x 2 mL samples per cycle
Convenient front loading design
Locking Safety Lid
Optimate™ software

- Intuitive user interface

- Customize and save programs

Widest range of accessories available
Process samples from 25 μL to 50 mL
